JSR-DS120 Series Pcb Pancake Slip Ring
JSR-DS120 Series Pcb Pancake Slip Ring
JSR-DS120 Series Pcb Pancake Slip Ring
JSR-DS120 Series Pcb Pancake Slip Ring
video

JSR-DS120 Series Pcb Pancake Slip Ring

Large aperture disc slip ring refers to the conductive slip ring with an inner hole diameter of more than 80mm. JARCH Mechanical & Electrical has been specialized in developing and producing large aperture disc conductive slip ring for 17 years. Its JSR-DS120 series is a large aperture PCB disc conductive slip ring with an inner hole of 120mm, and its thickness can be as thin as 5mm. Compared with JARCH mechanical and electrical conventional slip ring, its main characteristics are very thin thickness, large diameter. The contact is made of precious metal, with high stability, low torque, low loss and maintenance free, low electrical noise, long life and other characteristics, widely used in medical CT, rotating booth, LDE rotating billboard and other occasions with small installation space!

Syle:JSR-DS120 ID:120mm Circuits:1-24 Thickness:5-6mm

download:

instructions 3D model

Model Order Instructions

MODEL


Product Grade Select Sheet

SELECTION

Product Grade

Max Speed

Working Life

Contact Materail

TY(General Grade)

100RPM

10000000turns

Precious Material

GY(Industrila Grade)

250RPM

20000000turns

Gold Plate-Gold Plate

JG(Military Grade)

400RPM

300000000000turns

Gold Alloy

Technical Specification Parameters

PARAMETER

Electrical Specification Parameters
Electrical ParametersSignal Parameters

specification

valuespecificationvalue
Rated Voltage0-380VAC/VDCRated Voltage0-380VAC/VDC
insulation resistance≥1000MΩ/500VDCinsulation resistance≥500MΩ/500VDC
Wire specificationsAWG16#Galvanized teflonWire specificationsAWG22Galvanized teflon
Rated CurrentCurrrent for each circuit is optional
Electric Noise10mΩ@6VDC,50mA,5Rpm
Dynamic resistance change<0.01Ω
Mechanical technical parameters
Mechanical ParametersEnviroment Parameters
specificationvaluespecificationValue
Working Life>10000000 turnsWorking Temperature-30C°-80C°
Rated Voltage100MRP(Optional)Working Humidity0-85%RH
Contact MaterialPrecious Material(Optional)Mechanical VibrationMIL-SID-810E
Shell MaterialAluminium alloy (anodized)Protect GradeIP51(Options:IP65、IP68)
Rotational Torque0.1N.M;+0.03N.M/Circuit

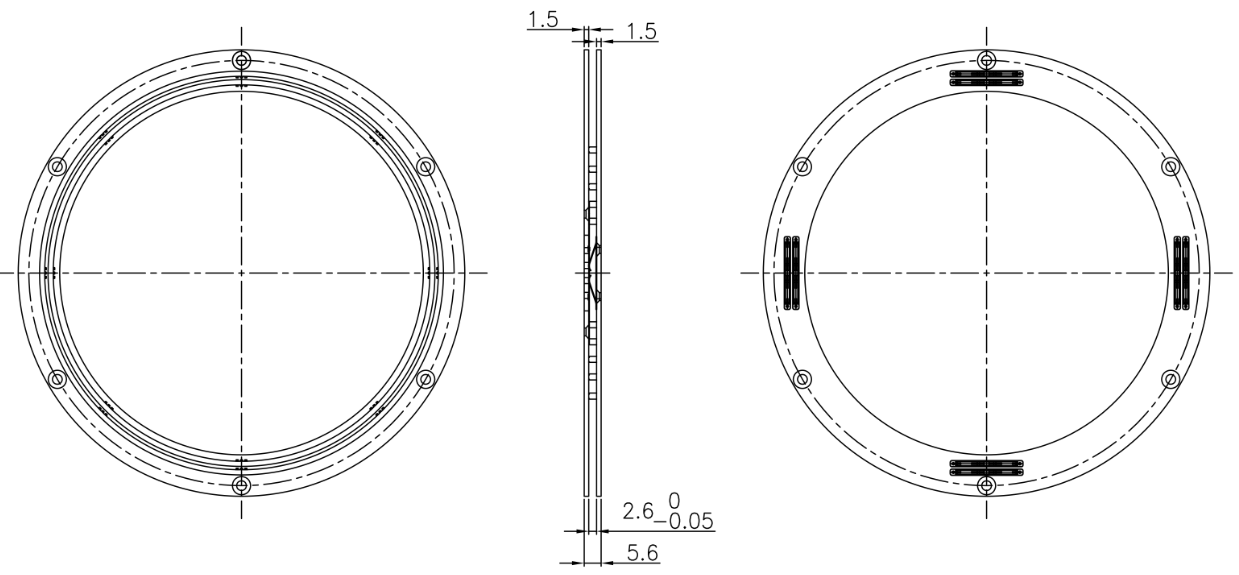

DRAWING

The following drawings are only part of the drawings, if you need drawings of other models and specifications, please contact the online customer service, or directly call Nico +8613631617302, and directly communicate with our technology


JSR-DS120-2S

Standard Products Selection Sheet

SELECTION

Standard Products Selection Sheet

DS120 Series - Electrical Pancake Slip Ring Selection Sheet

Style NO.

Signal or 2A

5A

10A

Circuits

OD(MM)

JSR-DS120-2S

2

0

0

2

Contact customer service

JSR-DS120-2P05

0

2

0

2

Contact customer service

JSR-DS120-2P05-2S

2

2

0

4

Contact customer service

JSR-DS120-4P05

0

4

0

4

Contact customer service

JSR-DS120-6S

6

0

0

6

Contact customer service

JSR-DS120-6P10

0

6

0

6

Contact customer service

JSR-DS120-6P10

0

0

6

6

Contact customer service

JSR-DS120-2P05-4S

4

2

0

6

Contact customer service

JSR-DS120-12S

12

0

0

12

Contact customer service

JSR-DS120-12P05

0

12

0

12

Contact customer service

JSR-DS120-12P10

0

0

12

12

Contact customer service

JSR-DS120-6P05-6S

6

6

0

12

Contact customer service

JSR-DS120-6P10-6S

6

0

6

12

Contact customer service

JSR-DS120-18S

18

0

0

18

Contact customer service

JSR-DS120-18P05

0

18

0

18

Contact customer service

JSR-DS120-6P05-12S

12

6

0

18

Contact customer service

JSR-DS120-12P05-6S

6

12

0

18

Contact customer service

JSR-DS120-8P05-10S

10

8

0

18

Contact customer service

JSR-DS120-24S

24

0

0

24

Contact customer service

JSR-DS120-24P05

0

24

0

24

Contact customer service

JSR-DS120-6P05-18S

6

18

0

24

Contact customer service

JSR-DS120-12P05-12S

12

12

0

24

Contact customer service

Note: Many 5A current rings together can be used as 1 channel N*5A current ring; For example: 2 ring 5A and up as 1 channel 10A use. The above models are part of this specification.

 If you need other specifications, please contact Nico +8613631617302



Wire Color for Each Circuit

COLOR CODE SHEET

CircuitColorCircuitColor
1black7purple
2red8grey
3yellow9orange
4green10brown
5blue11pure
6white12light green
(Note: 12 colors are a group, serial number 1...12, the next group repeat the first 12 colors, each group with number tube as the group number identification.)


INSTALLATION


optional

Note: The following special requirements can be customized, the delivery time will be increased by 3~15 days, the cost will be increased by 5%~50%, most of the basic parts of our company are standardized, modular, non-standard customization can also greatly reduce the cost and delivery time.

①  Different aperture can be customized

② Different loop ways can be customized

③ can be added shell protection

④  Optional air plug, terminal and heat shrinkable tube.

⑤ Temperature control signal, thermocouple signal mixture.

⑥ The number of channels can be customized according to requirements.

⑦ the thinnest customized thickness can reach 3 mm

⑧ stainless steel shell requirements.


RANGE

The medical CT

CT scans a layer of a certain thickness of a part of the human body with X-ray beam. The X-ray through the layer is received by the detector, converted into visible light, converted from photoelectric to electrical signal, and then converted into digital by analog/digital converter, input to the computer for processing. People who have done CT know that CT rotates continuously when it is running, and the human body can be scanned 360 degrees by continuous rotation. The reason why CT can transmit various scanned human information while constantly rotating is the credit of the internal conductive slip ring. However, due to the limited installation space inside CT, Therefore, the PCB disc conductive slip ring is used as the link point of rotating transmission in CT. The special PCB conductive slip ring developed and produced by Shenzhen Jiachi has been successfully applied to a certain type of medical CT machine in China, and its stability and reliability have been proved after a long time of operation.


医疗CT


LDE rotating light box

The modern city can not do without the support of the LED rotating light box, walking in the streets of the modern metropolis everywhere can see a variety of LED rotating light box, rotating light box through 360 degrees non-stop rotation to the passers-by to show his light box above the various commercial advertisements. Many people will wonder why this light box can keep rotating, why the internal line will not knot twisted, in fact, all this is the credit of conductive slip ring, conductive slip ring is to solve the winding problem caused by 360 degree rotation. There are many kinds of conductive slip ring, and the shape is mainly divided into column type and disk type. Because the installation space of LED rotating light box is limited, we generally choose disk type slip ring as its rotating transmission node. The PCB disc conductive slip ring developed and produced by Shenzhen Jiachi Mechanical & Electrical has been used by many light box manufacturers in various LDE rotating light boxes. This PCB conductive slip ring is simple to install, convenient to change, and low cost, and has been recognized by the majority of customers.

LDE旋转广告牌

Rotating display table

The rotating display table shows the different positions of the exhibits to people in the same position by rotating constantly, so that people can have a 360 degree view of all parts of the exhibits in the booth without dead Angle. Show rotating platform is widely used in all kinds of things, and all kinds of video shot of the item, the rotation of the rotating stage need uninterrupted, so conductive slip ring is called the show taichung rotation indispensable widget, but because the rotating stage internal installation space is limited, the ordinary post type conductive slip ring can't satisfy the installation size, Therefore, PCB disc conductive slip ring is the best choice. PCB disc conductive slip ring can be installed at a minimum height of 5 mm, is widely used in a variety of equipment limited by the installation space above, favored by all kinds of equipment businesses.

旋转展示台
