JSR-WR050 Series waterproof conductive slip ring, through hole diameter 50mm(applicable to any number of channels: 1-48 channels optional, all aluminum alloy structure of the integral precision conductive slip ring. Support signal, communication, or 10A-30A power supply current, voltage 380VAC/24VDC. Specially designed for underwater operation and waterproof operation, industrial grade products, through-hole installation, waterproof IP68, gold-gold contact, using imported sealing and military grade electroplating treatment, multi-point contact, wire using waterproof Gran, cable can be customized according to requirements.

ID:50mm OD:120mm Circuits:1-72路 IP Grade:IP65/IP68

download:

instructions 3D model

Model Specification

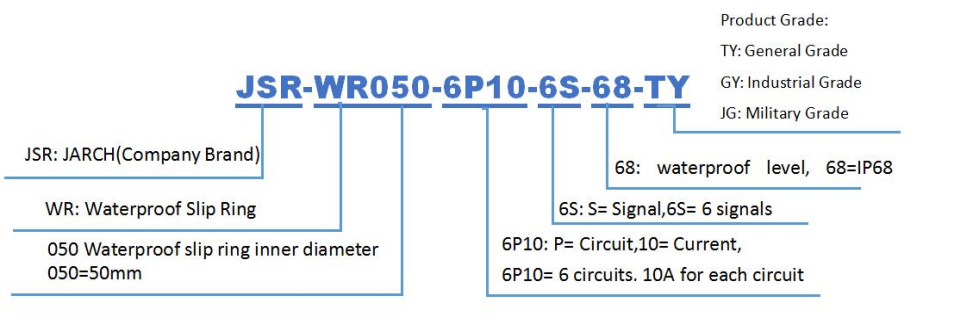

MODEL


Product Grade Select Sheet

SELECTION

Product Grade

Max Speed

Working Life

Contact Materail

TY(General Grade)

250RPM

20000000turns

Precious Material

GY(Industrila Grade)

600RPM

60000000turns

Gold Plate-Gold Plate

JG(Military Grade)

1000RPM

150000000turns

Gold Alloy

Technical Specification Parameters

PARAMETER

PARAMETER

DRAWING


Standard Products Selection Sheet

SELECTION

Standard Products Selection Sheet

WR050 - Waterproof/Underwater Slip Ring Selection Sheet

Style NO.

10A

Signal or 5A

L(MM)

Style NO.

10A

Signal or 5A

L(MM)

WR050-6P10

6

0

51.2

WR050-6S

0

6

51.2

WR050-2P10-4S

2

4

51.2

WR050-4P10-2S

4

2

51.2

WR050-12P10

12

0

74

WR050-12S

0

12

74

WR050-2P10-10S

2

10

74

WR050-4P10-8S

4

8

74

WR050-6P10-6S

6

6

74

WR050-P0810-4S

8

4

74

WR050-10P10-2S

10

2

74

WR050-18S

0

18

96.8

WR050-18P10

18

0

96.8

WR050-4P10-S14

4

14

96.8

WR050-2P10-S16

2

16

96.8

WR050-P0810-10S

8

10

96.8

WR050-6P10-12S

6

12

96.8

WR050-12P10-6S

12

6

96.8

WR050-10P10-8S

10

8

96.8

WR050-16P10-2S

16

2

96.8

WR050-14P10-4S

14

4

96.8

WR050-24S

0

24

119.6

WR050-24P10

24

0

119.6

WR050-12P10-12S

12

12

119.6

WR050-6P10-18S

6

18

119.6

WR050-6P10-24S

6

24

142.4

WR050-18P10-6S

18

6

119.6

WR050-36S

0

36

165.2

WR050-30S

0

30

142.4

WR050-12P10-24S

12

24

165.2

WR050-12P10-18S

12

18

142.4

WR050-6P10-36S

6

36

192

WR050-6P10-30S

6

30

165.2

WR050-48S

0

48

214.8

WR050-42S

0

42

192

WR050-12P10-36S

12

36

214.8

WR050-12P10-30S

12

30

192

WR050-6P10-54S

6

54

260.4

WR050-6P10-42S

6

42

214.8

WR050-72S

0

72

310

WR050-60S

0

60

260.4

WR050-12P10-60S

12

60

310

WR050-12P10-48S

12

48

260.4

WR050-6P10-66S

6

66

310

Note: Many 5A current rings together can be used as 1 channel N*5A current ring; For example: 2 ring 5A and up as 1 channel 10A use. The above models are part of this specification.

 If you need other specifications, please contact us directly。

Wire Color for Each Circuit



COLOR CODE SHEET

CircuitColorCircuitColor
1black7purple
2red8grey
3yellow9orange
4green10brown
5blue11pure
6white12light green
(Note: 12 colors are a group, serial number 1...12, the next group repeat the first 12 colors, each group with number tube as the group number identification.)

INSTALLATION


OPTIONAL

Note: the following special requirements can be customized, the delivery time will increase by 3-15 days, the cost will increase by 5%-50%, Most basic parts are standard and module in our company,This can also greatly reduce the cost and delivery time of customized slip ring.

① The outlet mode and outlet length of rotor and stator can be customized.

② Due to the limitation of the structure, it can be customized according to the specified length or height or outer diameter.

③ The maximum power current or signal of 200 channels can be supported.

④ Optional aviation plug, terminal and heat shrinkable tube.

⑤ Yakawa, Panasonic, Siemens and other servo system signal, power line and encoder line hybrid slip ring.

⑥ High speed data transmission can be mixed(including Ethernet,USB, PROFIBUS, PROFINET, EtherCAT, CANOPEN, CANBUS, CC-LINK, RS232, RS485 and other industrial buses).

⑦ Temperature control signal, thermocouple signal mixing.

⑧ Shockproof, high temperature and other special environment customization.

⑨ It can be mixed with pneumatic and hydraulic rotary joint as an electric pneumatic hydraulic slip ring.

⑩ High frequency and low frequency can be customized, joint type can be customized.

⑪ High frequency power can be customized

⑫ The number of channels can be customized

⑬ The maximum current is 5000 amperes (A).

⑭ Military industrial class.

⑮ Navigation, optional underwater mode, IP65,IP68 optional.

⑯ Stainless steel housing requirements.



RANGE

Musical Fountain

A musical fountain is a movable fountain created for entertainment, designed aesthetically and often producing a three-dimensional effect.In this process, the water is manipulated to scatter and deflect light, and a three-dimensional image is created.The music fountain requires that the underwater nozzle can rotate freely and control the size and height of the water at will. These requirements make the music fountain inseparable from the control of the conductive slip ring. Jiachi's waterproof conductive slip ring can achieve the protection level of IP68, which can ensure the normal operation of the slip ring completely in the water and control each underwater nozzle.Jiachi electromechanical waterproof conductive slip rings have been used in Shenzhen "Sea World" music fountain, Chaoyang Jint Square music fountain and a series of large music fountain squares.

rgg

Music Water Wheel

The water wheel is an ancient irrigation tool that carries water.The water wheel, also called the skycar, is more than 10 meters high. It is supported by a 5-meter long axle with a caliber of 0.5 meters, with 24 wooden spokes, which are radially spread out to all sides.At the top of each spoke was a scraper and bucket.Nowadays, water wheels in the society are mostly small scenic spots with ornamental value. The symbolic water cannot drive the water wheels, but the operation of the water wheels is completely driven by the motor. Moreover, for the sake of aesthetics, various lights will be wrapped around the water wheels and accompanied by music.The normal operation of the music water wheel is also inseparable from the operation of waterproof conductive slip ring.Jiachi electromechanical research and development of conductive slip ring has a very perfect waterproof, can be in outdoor, rainy days, even underwater and a series of bad environment normal operation, Jiachi electromechanical slip ring is widely used in the window of the world, Splendid China and a series of famous scenic spots in the water car.

6jyu

Underwater Robot

Underwater robot, also known as unmanned remote control vehicle, is a kind of extreme operating robot working in the water.Underwater environment is bad and dangerous, the depth of human diving is limited, so underwater robot has become an important tool to develop the ocean.At present, the technology of underwater machine has been relatively mature, underwater machine has a series of actions such as sampling, salvage, maintenance and so on.Such a series of remotely controlled and complex movements make the underwater robot inseparable from the coordination of waterproof conductive slip rings. Jiachi has developed numerous waterproof slip rings at the request of many underwater robot manufacturers, which can guarantee the underwater robot to make various difficult movements for a long time.
