How should conductive slip ring be wired? Can conductive slip ring be reversed
site: home newsindustry

How should conductive slip ring be wired? Can conductive slip ring be reversed

source:industry 2022-06-10 14:57:46 Conductive slip ring 382

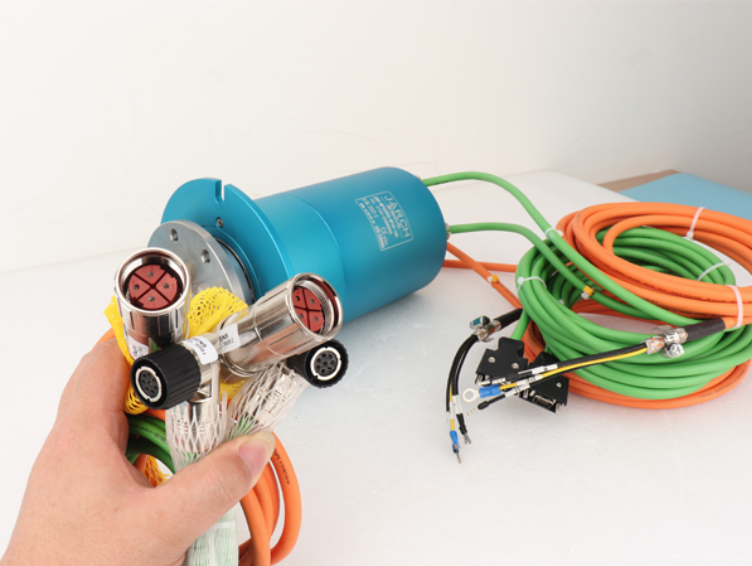

Many customers in the purchase of conductive slip ring will ask the hand of the conductive slip ring this wire to change how to connect, there is a conductive slip ring rotation is divided into forward and reverse. Today, Jiachi conductive slip ring Xiaobian will come and you will simply how to connect the wire of the conductive slip ring.图片

The wiring of conductive slip ring is actually very simple, Shenzhen Jiachi electrical research and development and production of conductive slip ring wire is a fixed sequence, wiring as long as in accordance with the sequence of one to the docking on the line. A simpler way is that you take our conductive slip ring as a piece of wire that can be rotated. If your incoming neutral wire is connected to our red conductive slip ring wire, then your outgoing wire is also connected to our red conductive slip ring wire. That is to say, the wire of the same specification as the wire of the color of our conductive slip ring should be connected with the wire of the color of our conductive slip ring. We must not make a wrong connection in the wiring. If the wire is connected incorrectly, the circuit will not be on, which will seriously cause the internal short circuit of the conductive slip ring, leading to the burning of the conductive slip ring.

As for the conductive slip ring rotation is divided into forward and reverse this problem we don't worry, the rotating mechanism of conductive slip ring is completed by the rotating bearing inside the conductive slip ring, bearing rotation is not divided into positive and negative rotation, so the conductive slip ring is also divided into forward and reverse rotation when rotating. But it is necessary to remind you about the rotation of the small series, although there is no positive and negative spin of the conductive slip ring, but the rotation speed of the conductive slip ring is different. Conventional conductive slip ring rotation speed at 300 revolutions per minute, if more than 300 revolutions per minute then conductive slip ring is a high-speed conductive slip ring, this conductive slip ring design structure and materials and ordinary conductive slip ring is different, to be frank is the price of the two are different.

There are many kinds of conductive slip ring. We must determine the specific requirements of the conductive slip ring when we choose it. When we do not understand the specific requirements of the conductive slip ring, we can contact the technology of the conductive slip ring with Jiechi: 13731617302. Jiachi Conductive slip ring technology will recommend the conductive slip ring for installation and use of your equipment according to the situation of your equipment.
