JSR-TH300 Series Through Hole Slip Rings
JSR-TH300 Series Through Hole Slip Rings
JSR-TH300 Series Through Hole Slip Rings
JSR-TH300 Series Through Hole Slip Rings
video

JSR-TH300 Series Through Hole Slip Rings

JSR-TH300 series through hole slip ring, perforated diameter 300mm(applicable to OD 450mm, number of channels: 1-108, aluminum alloy structure of the whole precision conductive slip ring. Support Signal (2A) or, or 10A, 15A, 30A supply current, voltage 380VAC/24VDC, the working voltage can be customized up to 1000V; The protection level can be customized to IP65/IP68.

ID:300mm OD:450mm Circuit:1-108 Circuits Voltage:220/380V

download:

instructions 3D model

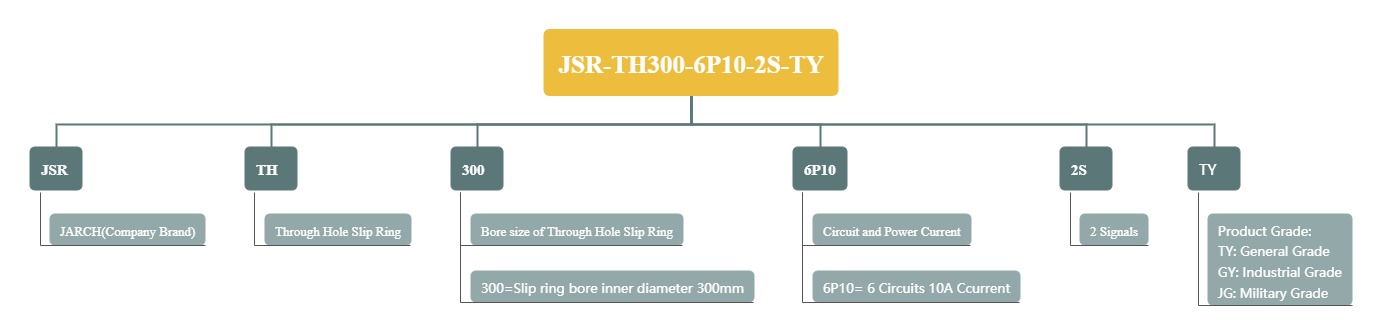

Model Ordering Instructions

型号定购说明


Product Grade Selection Table

SELECTION

Product Grade Gode

MAX. Speed

Working Life

Contact Material

TY(General Grade

250RPM

20 million revolutions

Precious Metal

GY(Industrial Grade)

600RPM

60 million revolutions

Gold plating - gold plating

JG(Military Grade)

1000RPM

150 million revolutions

Golden alloy

Technical Specifications

PARAMETER

Electrical Technical Parameters

Power

Signal

Spec.

Data

Spec.

Data

Voltage range

0-380VAC/VDC

Voltage range

0-380VAC/VDC

Insulation Resistance

≥1000MΩ/500VDC

Insulation Resistance

≥1000MΩ/500VDC

Lead wire spec.

AWG16# Tinned Teflon

Lead wire spec.

AWG22# Tinned Teflon

Rated current

Optional current for each channel

Electrical noise

10mΩ@6VDC,50mA,5Rpm

Dynamic resistance change

<0.01Ω

Mechanical Data

Mechanical Performance

Environmental Performance

Spec.

Data

Spec.

Data

Working Life

> 50 million revolutions  (depends on working conditions)

Operating Temperature

-30C°-80C°

Rated Speed

300MRP(can be customized )

Working Humidity

0-85%RH

Contact Material

Precious Metal (can be customized )

Mechanical Vibration

MIL-SID-810E

Shell Material

Aluminum Alloy (surface hard oxidation treatment)

IP Grade

IP51( IP65、IP68 Optional)

Rotational Torque

0.1N.M;+0.03N.M/ channel

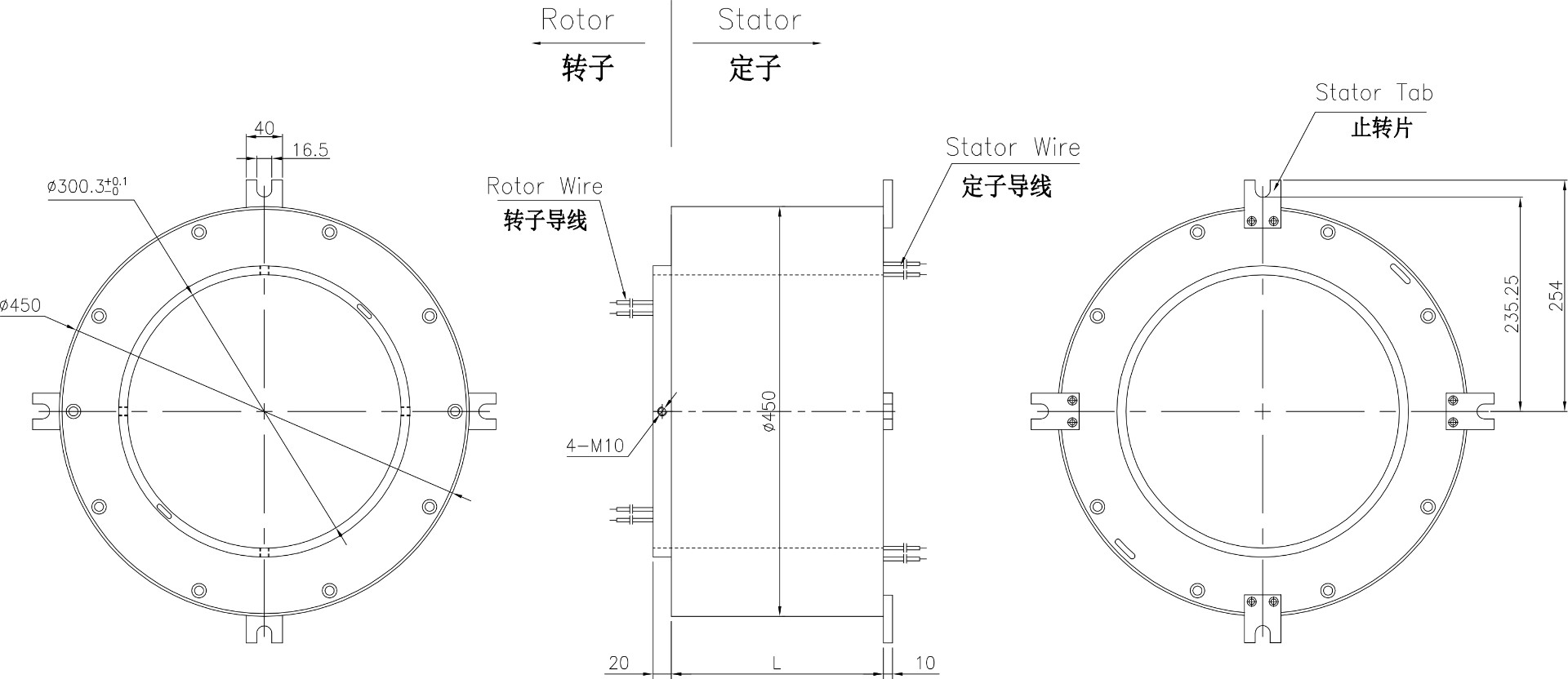

DRAWING

标准图纸

*If no standard models are suitable, contact us for custom solutions directly, thanks


Standard Products Selection Sheet

常规产品选型表

Conventional product selection table

JSR-TH300-XX Series Through Hole Slip Rings Table

Model

Power Circuits (10A)

Signal Circuits(5A)

Length(L/MM)

Model

Power Circuits (10A)

Signal Circuits(5A)

Length(L/MM)

JSR-TH300-2S

0

2

102.6

JSR-TH300-36S

0

36

306.6

JSR-TH300-2P10

2

0

102.6

JSR-TH300-6P10-30S

6

30

306.6

JSR-TH300-3S

0

3

108.6

JSR-TH300-12P10-24S

12

24

306.6

JSR-TH300-P0310

3

0

108.6

JSR-TH300-36P10

36

0

306.6

JSR-TH300-6S

0

6

126.6

JSR-TH300-42S

0

42

342.6

JSR-TH300-2P10-4S

2

4

126.6

JSR-TH300-6P10-36S

6

36

342.6

JSR-TH300-4P10-2S

4

2

126.6

JSR-TH300-12P10-30S

12

30

342.6

JSR-TH300-6P10

6

0

126.6

JSR-TH300-48S

0

48

378.6

JSR-TH300-12S

0

12

162.6

JSR-TH300-6P10-42S

6

42

378.6

JSR-TH300-2P10-10S

2

10

162.6

JSR-TH300-9P10-39S

9

39

378.6

JSR-TH300-P0310-9S

3

9

162.6

JSR-TH300-12P10-36S

12

36

378.6

JSR-TH300-6P10-6S

6

6

162.6

JSR-TH300-18P10-30S

18

30

378.6

JSR-TH300-8P10-4S

8

4

162.6

JSR-TH300-24P10-24S

24

24

378.6

JSR-TH300-10P10-2S

10

2

162.6

JSR-TH300-60S

0

60

450.6

JSR-TH300-12P10

12

0

162.6

JSR-TH300-6P10-54S

6

54

450.6

JSR-TH300-18S

0

18

195.6

JSR-TH300-9P10-51S

9

51

450.6

JSR-TH300-2P10-S16

2

16

195.6

JSR-TH300-12P10-48S

12

48

450.6

JSR-TH300-4P10-S14

4

14

195.6

JSR-TH300-72S

0

72

522.6

JSR-TH300-6P10-12S

6

12

195.6

JSR-TH300-6P10-66S

6

66

522.6

JSR-TH300-8P10-10S

8

10

195.6

JSR-TH300-12P10-60S

12

60

522.6

JSR-TH300-10P10-8S

10

8

195.6

JSR-TH300-24P10-48S

24

48

522.6

JSR-TH300-12P10-6S

12

6

195.6

JSR-TH300-36P10-36S

36

36

522.6

JSR-TH300-14P10-4S

14

4

195.6

JSR-TH300-84S

0

84

594.6

JSR-TH300-16P10-2S

16

2

195.6

JSR-TH300-12P10-72S

12

72

594.6

JSR-TH300-24S

0

24

234.6

JSR-TH300-24P10-60S

24

60

594.6

JSR-TH300-4P10-20S

4

20

234.6

JSR-TH300-36P10-48S

36

48

594.6

JSR-TH300-6P10-18S

6

18

234.6

JSR-TH300-96S

0

96

666.6

JSR-TH300-12P10-12S

12

12

234.6

JSR-TH300-12P10-84S

12

84

666.6

JSR-TH300-18P10-6S

18

6

234.6

JSR-TH300-24P10-72S

24

72

666.6

JSR-TH300-24P10

24

0

234.6

JSR-TH300-36P10-60S

36

60

666.6

JSR-TH300-30S

0

30

270.6

JSR-TH300-42P10-54S

42

54

666.6

JSR-TH300-6P10-24S

6

24

270.6

JSR-TH300-108S

0

108

738.6

JSR-TH300-12P10-18S

12

18

270.6

JSR-TH300-12P10-96S

12

96

738.6

JSR-TH300-18P10-12S

18

12

270.6

JSR-TH300-24P10-84S

24

84

738.6

JSR-TH300-24P10-6S

24

6

270.6

JSR-TH300-36P10-72S

36

72

738.6

JSR-TH300-30P10

30

0

270.6

JSR-TH300-P4810-60S

48

60

738.6

Note: N pieces of  5A current loops can be used as 1 channel of N*5A current loop;  For example, 2 rings 5A can be used as 1 circuit 10A.*If no standard models are suitable, contact us for custom solutions directly, thanks.


Color Code of Lead Wires

各环路导线色码表

Ring No.ColorRing No.Color
1Black7Purple
2Red8Grey
3Yellow9Orange
4Green10Brown
5Blue11Transparent
6White
12Light Green
(Note: 12 colors are a group, with serial numbers 1...12, the next group repeats the first 12 colors, and each group is identified by a number tube as the group serial number.)

INSTALLATION

 安装方式





OPTIONAL


Note: The following special requirements can be customized, the delivery time will increase by 3~15 days, and the cost will increase by 5%~50%. Most of the basic accessories of our company are standardized and modularized, and non-standard customization can also greatly reduce price and delivery.

  1. The outgoing method and outgoing length of the rotor and stator can be customized.

  2. Due to structural limitations, it can be customized according to the specified length or height, or outer diameter.

  3. It can support up to 200 channels of power current or signal.

  4. Optional aviation plug, terminal, and heat shrink tube.

  5. Yaskawa, Panasonic, Siemens, and other servo system signal, power line, and encoder line hybrid slip ring.

  6. Can mix high-speed data transmission (including Ethernet, USB, Profibus, ProfiNET, EtherCAT, CANopen, CANBUS, CC-LINK, RS232, RS485, and other industrial buses).

  7. The temperature control signal and thermocouple signal are mixed.

  8. Customized slip ring for special environments such as shockproof and high temperature.

  9. It can be mixed with pneumatic and hydraulic rotary joints to form a gas-electric-hydraulic slip ring.

  10. The low/high frequency and connector types can be customized.

  11. The High-frequency power can be customized.

  12. The number of channels can be customized according to requirements.

  13. The maximum current can reach 5000 amperes (A).

  14. Military level.

  15. Waterproof, underwater mode optional, IP65, IP68 optional.

  16. Requirements for stainless steel housing.
