JSR-SFO14 Series Single Channel Fiber Optic Slip Ring
Professional slip ring manufacturer
Global HotlineInfo@szjarch.cn +86137-1425-1726
JSR-SFO14series single-channel optical fiber slip ring, 1 optical fiber (support single-mode/multi-mode) in the 360 degree unlimited rotation when lossless transmission data. The entire product is very compact, specifically for the space size requirements, especially suitable for application in need unrestricted, continuous or intermittent rotation, and also need to send the large capacity data from a fixed position to the rotational position, signal, can improve mechanical properties, simplifying the system operation, avoid activities due to the rotation of the joints on the damage of the fiber.
download：instructions 3D model
Gold Plate-Gold Plate
Electrical Specifictaion Parameters
fiber optic slip ring value
1310/850 nm or 1310/1550 nm
Insertion loss deviation
Insertion loss deviation
<0.5 dB/channel 1, <0.5 dB/channel 2
Maximum allowed optical power
The shell material
Both ends of the tail fiber
Optical fiber type
Multi mode 3 mm Jacket
Type of Connector
FC, SC, ST, SMA, MURJ, or LC
Pls check the drawing above
As the production

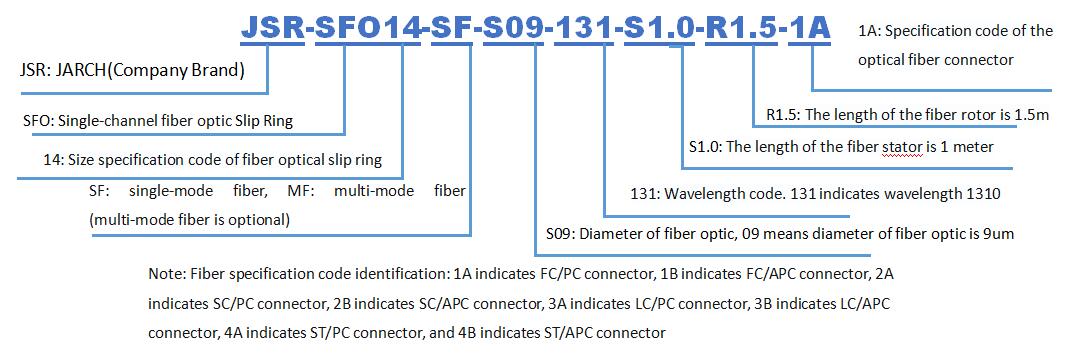

Standard Products Selection Sheet
JSR-SFO14 Series Single Mode Fiber Optic Slip Ring Selection Sheet
Single Mode/Multi Mode
Diameter of Fiber Optic
Note: Fiber connector specification code identification: 1A indicates FC/PC connector, 1B indicates FC/APC connector, 2A indicates SC/PC connector, 2B indicates SC/APC connector,3A indicates LC/PC connector, 3B indicates LC/APC connector, 4A indicates ST/PC connector, and 4B indicates ST/APC connector,any questions pls contace us mobile : +8613631617302
Note: the following special requirements can be customized, the delivery time will increase by 3-15 days, the cost will increase by 5%-50%, Most basic parts are standard and module in our company,This can also greatly reduce the cost and delivery time of customized slip ring.
① The outlet mode and outlet length of rotor and stator can be customized.
② Due to the limitation of the structure, it can be customized according to the specified length or height or outer diameter.
③ The maximum power current or signal of 200 channels can be supported.
④ Optional aviation plug, terminal and heat shrinkable tube.
⑤ Yakawa, Panasonic, Siemens and other servo system signal, power line and encoder line hybrid slip ring.
⑥ High speed data transmission can be mixed(including Ethernet,USB, PROFIBUS, PROFINET, EtherCAT, CANOPEN, CANBUS, CC-LINK, RS232, RS485 and other industrial buses).
⑦ Temperature control signal, thermocouple signal mixing.
⑧ Shockproof, high temperature and other special environment customization.
⑨ It can be mixed with pneumatic and hydraulic rotary joint as an electric pneumatic hydraulic slip ring.
⑩ High frequency and low frequency can be customized, joint type can be customized.
⑪ High frequency power can be customized
⑫ The number of channels can be customized
⑬ The maximum current is 5000 amperes (A).
⑭ Military industrial class.
⑮ Navigation, optional underwater mode, IP65,IP68 optional.
⑯ Stainless steel housing requirements.
Radar, which is a transliteration of Radar, comes from the acronym Radio Detection and Ranging, which stands for "radio detection and Ranging". It finds objects using the radio method and determines their location in space. Therefore, radar is also known as "radio location". Radar is an electronic device that uses electromagnetic waves to detect targets. Modern early warning radar, search warning radar, guidance control radar, gun control radar, or other series of mostly need to constantly rotating search radar target positioning, fiber optic radar can normal company have slip ring a large part of the credit, radar in 360 degrees of spinning fiber slip ring can guarantee the normal transmission of all kinds of electromagnetic signals at the same time, The radar can quickly and accurately explore, locate and strike targets. Jiachi's fiber slip ring is widely used in various radars because of its efficient transmission rate, and is trusted by new and old customers.
Through the electrification of the optical theodolite, it can capture the target image and record the accurate Angle measurement information in real time. Through the interpretation and processing of the target image after the event, the accurate central axis offset of the target can be obtained, and the more accurate Angle measurement value can be obtained by superposition. The photoelectric theodolite transmits signals to the computer through optical imaging to achieve accurate positioning and capture images of the target. In order to capture the target faster, the modern photoelectric theodolite needs to rotate quickly and transmit the captured picture signal to the computer at the same time, so the optical fiber slip ring plays a very important role here.
Fire control system is the equipment installed on aircraft, armored vehicles, warships and other platforms, also known as weapon fire control system, the full name of fire command and control engineering, is the general term of the equipment to control the automatic targeting and launching of shooting weapons. Modern fire control system cannot leave computer precise calculation and fast aim, in order to be efficient and accurate target and strike, and all of the fire control system is equipped with high quality fiber slip ring, high quality fiber slip ring can ensure that the fire control system in high speed capture target accurately blow at the same time, jia chi produced fiber can achieve military standard slip ring, It has been used in the payment system of various weapons for many times, and has experienced the baptism of war in war-torn countries such as the Middle East and Africa, and received the recognition and trust of the majority of customers.
Fiber Optic slip ring is also called Fiber-Electric slip ring, Fiber Optic Rotary Joint. Adopt fiber to transmit signal, used to any devices to transmit electricity and Fiber signal when 360° rotating, such as HD video transmission system, microwave communication, medical equipment, sensor signal measurement, radar, and video monitoring system, etc. Especially suitable for some applications which require keeping continuous or intermittent rotating and transmitting mass data from the static side to the rotation side, which can improve mechanical performance, simplify system operation, and avoid damage to fiber when rotating. Can be combined with the traditional electric slip ring to transmit power and high-speed data.
The wire precious metal brush improves the shortcomings of the composite metal brush, with small wear debris, small size, and good signal transmission stability, but the bearing capacity is very limited. Fiber brushes are designed with multiple metal fibers, which maintain multiple points of contact with the metal ring body, and have excellent electrical conductivity and high current density.
The conductive slip ring is an important electrical component responsible for connecting and transmitting energy and signals for the rotating body. It is usually installed in the center of rotation of the equipment and consists of two parts: the rotor and the stator. The conductive slip ring is used as the connecting part of the rotating part, if it is not selected properly, it will cause the equipment to fail to operate normally or damage the equipment due to operational obstacles, and may even cause an accident.
The conductive slip ring is used to conduct electricity between two relatively rotating equipment, which can effectively prevent the problem of twisting and winding during the rotation of the equipment. However, with the development of industrial technology, more and more places need to use slip rings, and the requirements for slip rings are getting higher and higher, not only requiring the slip rings to transmit power signals, but also to transmit other media: compressed air, Hydrogen, nitrogen, chemical mixed gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages.
